K-80 | Pro Rib

Krieghoff K-80 Parcours

The K-80 Pro is available with a Trap or a Sporting configuration. The K-80 Pro features an adjustable rib which is can be set and locked in place by the shooter to fine tune the gun for their own personal mount. The Pro Rib is taller than the conventional soldered Tapered Flat Rib on a standard K-80 Trap or Sporter. This promotes a higher head position and more visibility of the foreground.

Each new K-80 comes with 10 years warranty and backed by our excellent Krieghoff Service, offering advice, service and repairs for the complete Krieghoff range.

The fully adjustable O/U-barrel for shooting trap. Not only can the point-of-impact of both barrels be adjusted simultaneously, the possibility also exists to adjust the spread between the 2 free-floating barrels by changing the front hanger resulting in different point of impacts for each barrel if desired. This way, for example, the bottom barrel can be set to shoot higher than the top barrel.

K-80 Pro Rib | Barrels

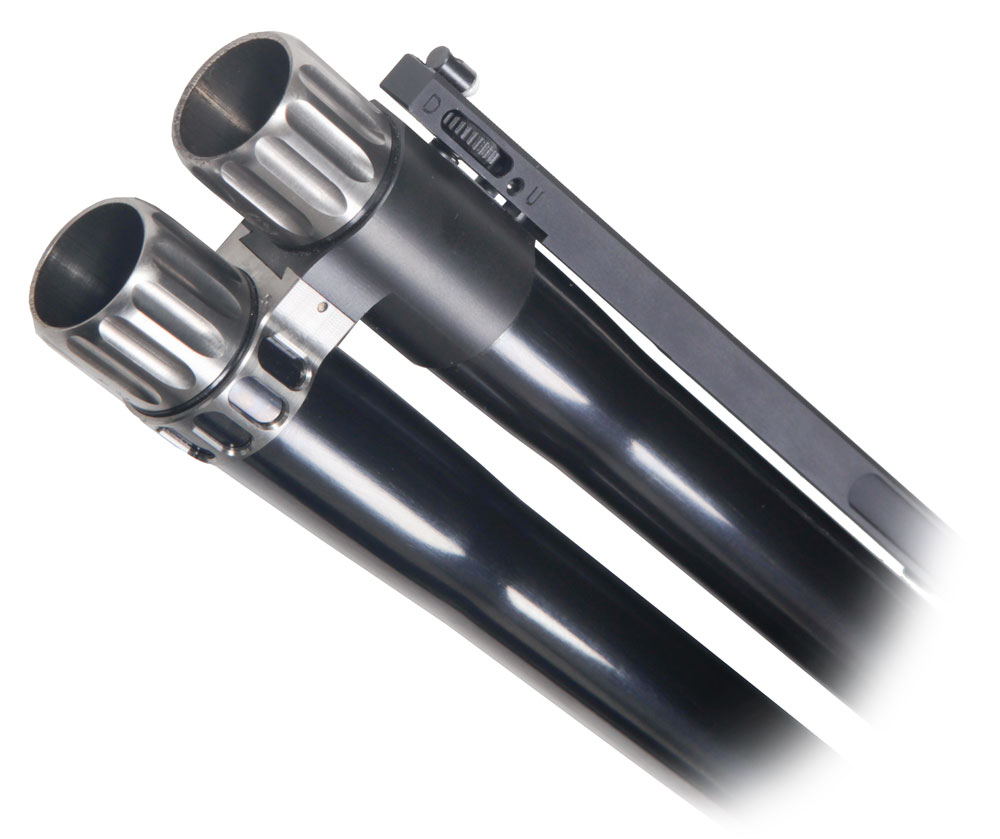

Built around the same K-80 Receiver as every K-80, the K-80 Pro gives you the ability to adjust the rib height and puts you in control. The ability to adjust the rib is the key feature of the Pro Rib, the raised height allows more visibility and quicker target alignment. The rib measures 16mm from the barrel at the rear and between 6.5mm and 12.5mm at the front, depending on which extension adjustment setting you use. The height can be altered using the adjustment wheel.

Krieghoff K-80 Parcours

To change the height of the rib, simply unscrew the grub screw on the top of the rib, adjust the wheel to the correct setting you want, then tighten the grub screw to fix the position. Note that older Pro Rib models, use a spacer block system to adjust the height of the rib. Different heights are available to order.

Krieghoff K-80 Parcours

K-80 Pro Rib | Stock

Optimally designed stock and forearms to suit the Pro Rib barrels and keep your head aligned with the rib. The adjustable comb can be easily modified to suit individual requirements. The main difference between the Pro Trap and Pro Sporter is the Stock. The Pro Trap is now with a rollover comb giving you optimum head positioning.

Krieghoff K-80 Stock

K-80 Pro Rib | Specifications

Krieghoff K-80 Pro

K-80 Pro Sporter

  • 12/76 (3"), chambers are chrome plated
  • Standard barrel length: 76 cm (30") or 81 cm (32")
  • Barrel Weight with Steel Chokes/Hanger: 1,692 g (30") or 1,752 g (32")
  • Barrel Weight with Titanium Chokes/Hanger: 1,676 g (30") or 1,736 g (32")
  • Factory screw-in chokes, incl. 5 choke tubes and choke wrench
  • Free-floated barrel set
  • Adjustable rib: 10 mm taper flat featuring chamfered edges on top
  • ProSporter stock with adjustable comb
  • “Schnabel” forearm stock with slanted end
  • Highest selectable shot pattern: 70/30
  • Stock finish: epoxy
  • Weight*: approx. 4.1 kg
Krieghoff K-80 Pro

K-80 Pro Trap

  • 12/76 (3"), chambers are chrome plated
  • Standard barrel length: 76 cm (30") or 81 cm (32")
  • Factory screw-in chokes, incl. 5 choke tubes and choke wrench
  • Free-floated barrel set
  • Adjustable rib: 10 mm taper flat featuring chamfered edges on top
  • ProTrap stock with adjustable comb
  • Trap forearm with slanted end
  • Highest selectable shot pattern: 70/30
  • Stock finish: epoxy
  • Weight*: approx. 4.1 kg

K-80 Pro Barrels are available in 30" (1,682g) and 32" (1,726g), both with Screw In Chokes only.

Krieghoff K-80 Parcours
  Pro Sporter Pro Trap
Length of Pull 365mm / 14.37" 365mm / 14.37"
Length of Grip 89mm / 3.50" 89mm / 3.50"
Drop at Nose 40mm / 1.57" 45mm / 1.77"
Drop at Monte Carlo 55mm / 2.16" 45mm / 1.77"
Drop at Heel 68mm / 2.68" 54mm / 2.13"
Cast at Heel 3mm / 0.12" 3mm / 0.12"
Cast at Toe 11mm / 0.43" 13mm / 0.51"
Pitch 83º 90º

K-80 Options

To get an idea of what you can choose when buying a K-80, visit the Krieghoff Options section. You can select barrel type and length, stock grade and engraving pattern.
